Start at the arrow triangle head. Use Rounded Rectangle tool, set it at size 500x500 pixels corner radius 20 pixels

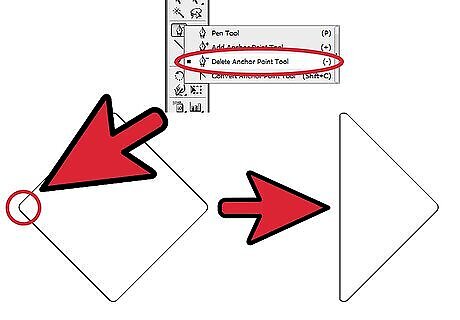

Make to a triangle shape by use Delete Anchor Point Tool, rotated your square for angle 45. Click at the square and then click at the point that shown on picture, you will get and triangle.

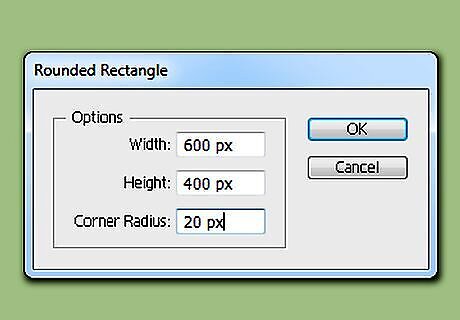

Create a new rectangle to be your arrow body. Use Rounded Rectangle tool, set it at size 600x400 pixels corner radius 20 pixels

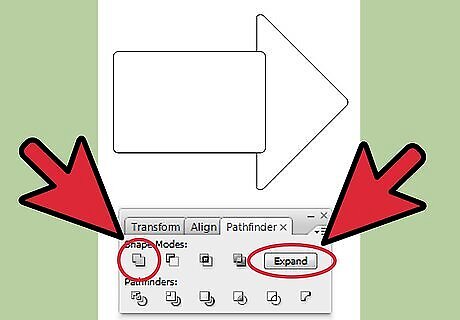

Position your rectangle like in the picture and then selected both of it and go to pathfinder and click the Add to Shape Area button to combine all two pieces into one and then click expand

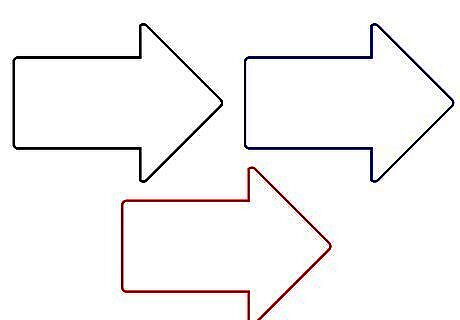

Copy your arrow for three pieces and set it in different colors to make it easy to understand. from this picture I set it to black( the main arrow ), blue(the outer arrow) and red (arrow shadow)

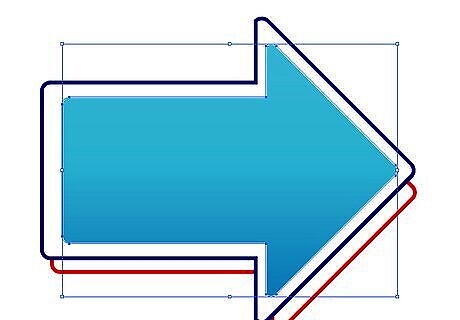

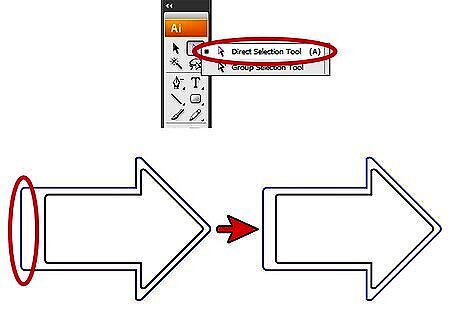

Set your blue under the black one and extend it like in a picture, use Direct selection tool and moved the points to right position (as shown on a picture)

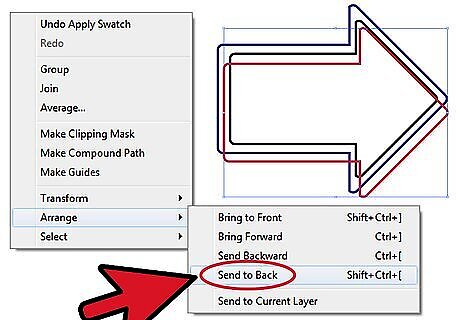

Selected a red one and place it like in a picture, after that, send it to back by click it and press right click>Arrange>Send to back
Colored the main arrow by use Gradient Tool, set the colors to the following: first color at position R = 101, G = 197, B =220; second color at position R = 92, G = 192,B = 217; third color at position, R = 72, G = 151, B = 197 set the stroke White by weight 4 pt

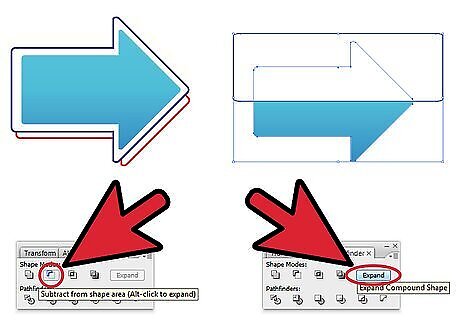

Copied it for one piece and created a rectangle and set it on a middle to top of an arrow, selected all and go to Pathfinder click on the Subtract from Shape Area button and then click expand

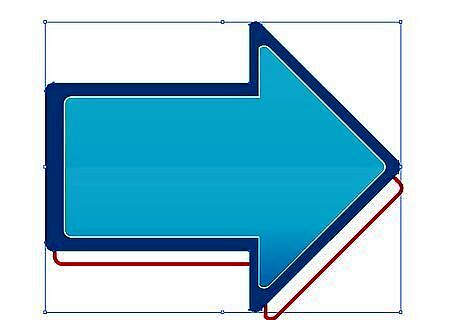

Position it lie in a picture, after that, colored a blue one by following at position R = 19, G = 116,B = 158

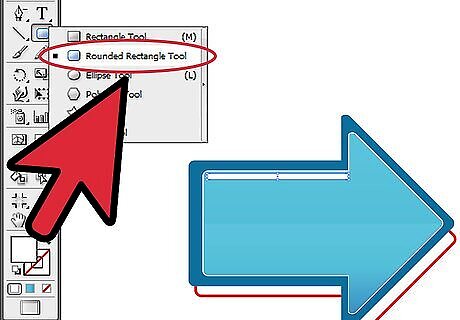

Make a highlight and shadow for your arrow by use Rounded Rectangle tool, crated it in a long and thin size and set it on the border of the arrow colored it to White and then make it transparent approximately 60 percent. About the shadow, colored it in the same color of the blue one and also make it transparent approximately 80 percent
Created a back shadow by colored it at position R = 128, G = 128,B = 128, Selected this part and go to Effect>Blur>Gaussian Blur>Radius 16 pixels. You will got a blur shadow.

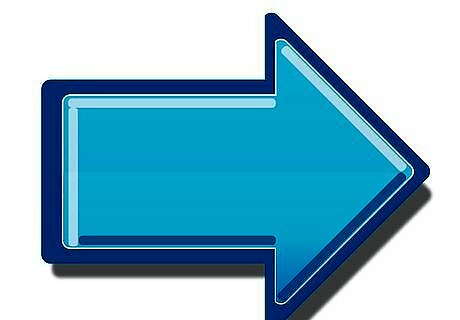

Finished.
